Architecture

Recommended Workflow

The recommended approach combines multiple specialized tools for complete platform coverage.

Content Paths

Path	Flow	Use Case
Chinese Platforms	Content → blog-auto-publishing-tools → Juejin, CSDN, Zhihu, CNBlogs	Tech blog cross-posting
International	Content → Postiz → Twitter, LinkedIn, Reddit, Instagram	Social media management
Release Automation	GitHub Release → Actions → Twitter + Discord	Automated notifications

---

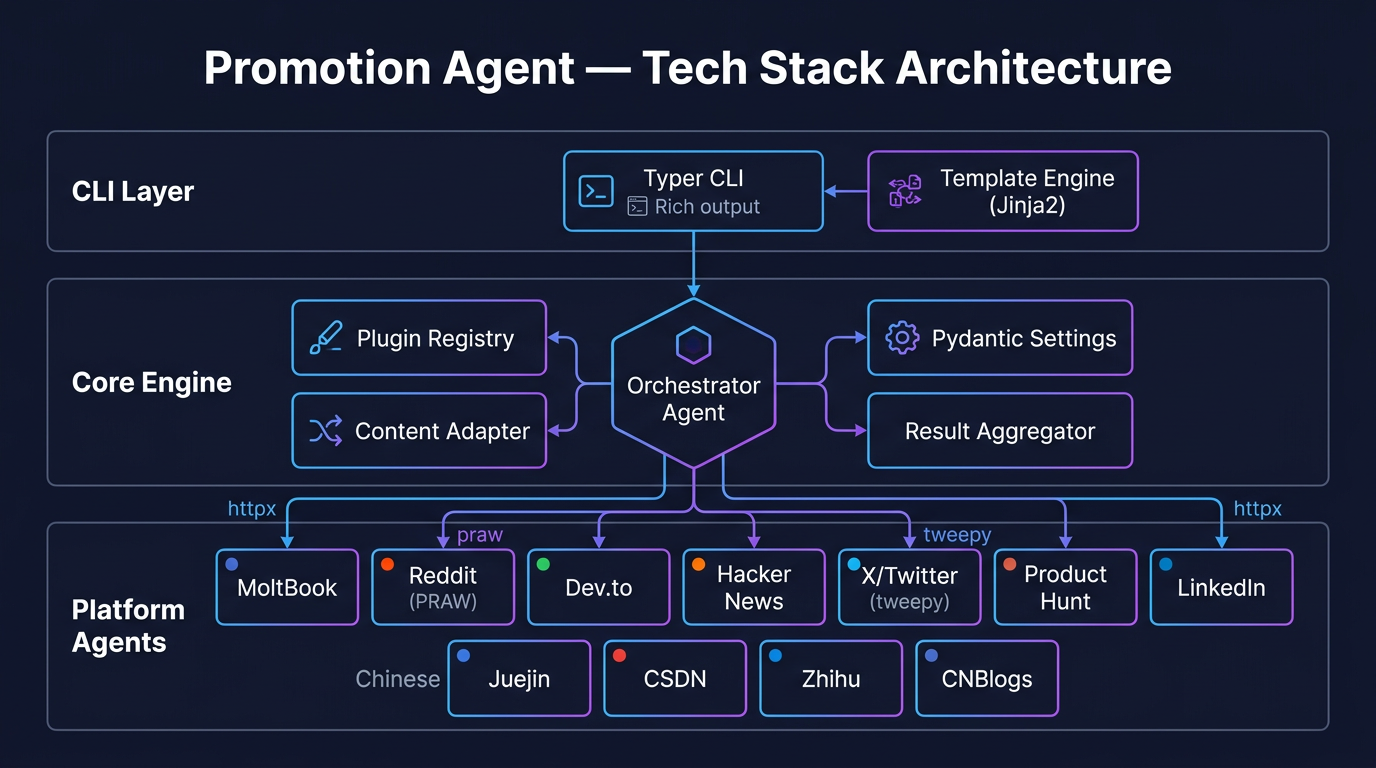

Tech Stack Architecture

The promotion-agent reference implementation uses a three-layer architecture:

Layer	Components	Purpose
CLI Layer	Typer, Rich, Jinja2	User interface, formatting, templates
Core Engine	Orchestrator Agent, Plugin Registry, Content Adapter, Pydantic Settings	Coordination, discovery, transformation, config
Platform Agents	11 specialized agents (httpx, praw, tweepy)	Platform-specific execution

---

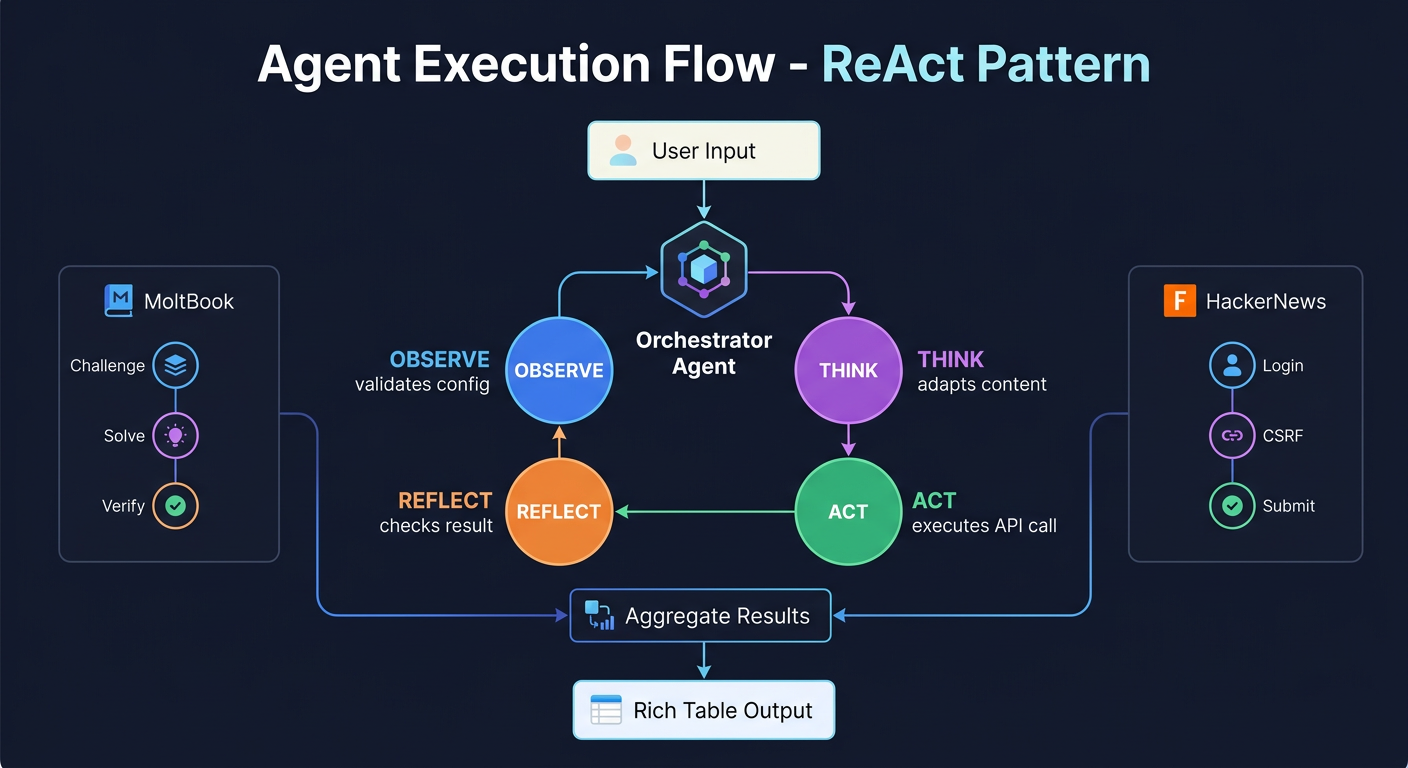

Agent Execution Flow — ReAct Pattern

Each platform agent follows a ReAct (Reason + Act) loop:

The Four Phases

Phase	Action	Example
Observe	Validate config, check platform health	validate_config() verifies API keys exist
Think	Adapt content to platform-specific format	adapt_content() truncates Twitter to 280 chars
Act	Execute API call	POST to platform API, handle OAuth, submit forms
Reflect	Check result, handle errors	Parse response, capture URL/error in PostResult

Complex Agent Workflows

MoltBook — Challenge-Response (ReAct with reasoning):

Submit content → Receive 202 + math challenge → Solve (X + Y) → Verify with answer

Hacker News — Stateful Web Agent:

Login (session cookie) → GET /submit (extract CSRF token) → POST /r (form submit)

Both demonstrate multi-step reasoning where the agent must observe intermediate states, make decisions, and adapt its actions accordingly.

---

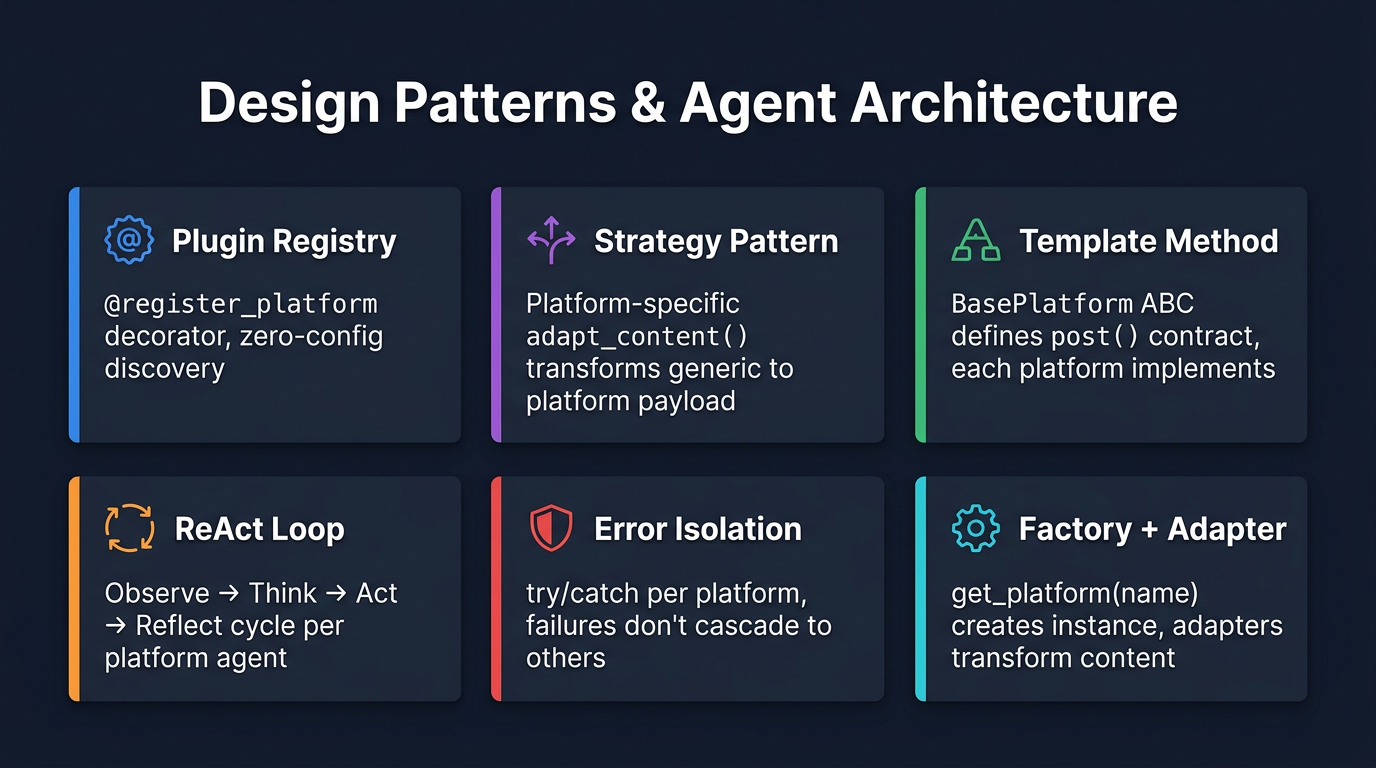

Design Patterns

The codebase implements six key patterns:

Plugin Registry

@register_platform
class RedditPlatform(BasePlatform):
    PLATFORM_NAME = "reddit"
    # Auto-registered, zero config

New platforms are added by creating a single file with the @register_platform decorator. No modifications to existing code required.

Strategy Pattern

Each platform implements adapt_content() differently — Reddit truncates titles to 300 chars, Twitter limits to 280, Dev.to lowercases tags. The orchestrator doesn't know the details.

Template Method

BasePlatform defines the contract (validate_config, adapt_content, post, health_check). Each platform fills in the implementation.

Error Isolation

for platform in targets:
    try:
        result = platform.post(content)
    except Exception as e:
        result = PostResult(success=False, error=str(e))
    results.append(result)

One platform failure never blocks others.

---

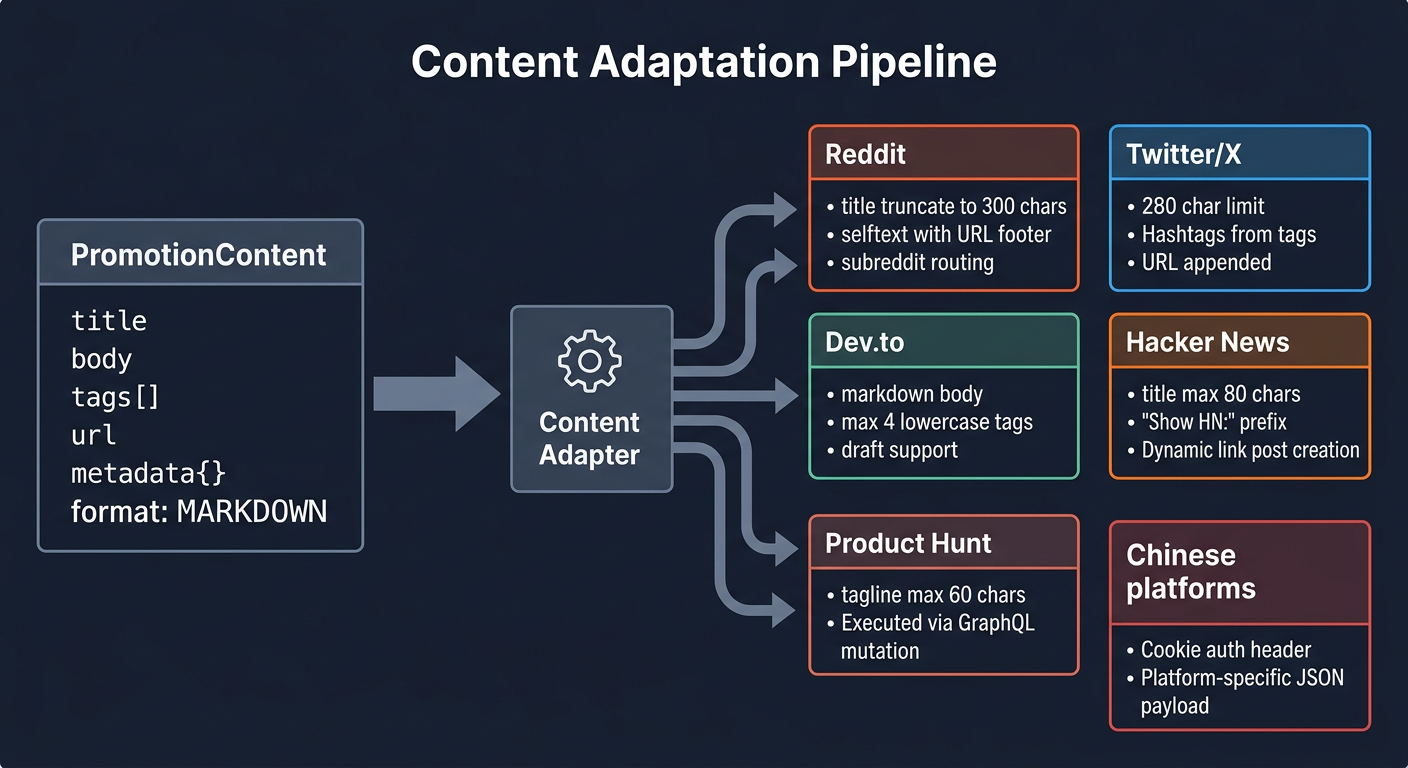

Content Adaptation Pipeline

Generic content flows through platform-specific adapters:

Platform	Title Limit	Body Limit	Special Handling
Reddit	300 chars	Full markdown	Subreddit routing, URL footer
Twitter/X	—	280 chars total	Hashtags from tags, URL appended
Dev.to	—	Full markdown	Max 4 lowercase tags, draft support
Hacker News	80 chars	— (link post)	"Show HN:" prefix
Product Hunt	—	Tagline: 60 chars	GraphQL mutation
Chinese Platforms	—	Full content	Cookie auth, platform-specific JSON

The adapter pattern ensures the orchestrator works with a single PromotionContent interface while each platform receives exactly the payload format it expects.
